產品類型:超小型防水船形開關
規格參數
功率: 0.4 VA max.@ 20V AC or DC max.
機械壽命: 50,000 make – and – break cycles.
接觸電阻: 100 mΩ typ .initial @ 2-4VDC 100mA.
絕緣電阻: DC500V 500MΩ.
絕緣強度: 500V RMS Min @ sea level.
工作溫度范圍: -30℃ to 85℃.
使用材質
外殼&銅頭: Glass filled nylon 6/6, flame retardant,heat stabilized (UL94V-0).
翹板: Nylon, black std.
支撐支架: Brass or steel, tin plated.
彈片/端子: silver or gold plated copper alloy.

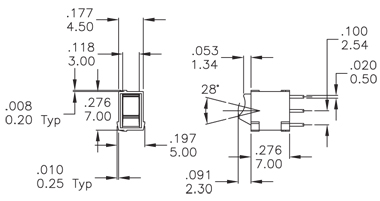

4U產品尺寸
