產品類型：兩檔電源鑰匙開關
DESCRIPTION:
· Zinc alloy die cast housing and cylinder.
· Bright chrome plated standard.
· 4 pin tumbler mechanism.
· Zinc alloy tubular keys, chrome plated, with plastic cover.
· Key may be withdrawn in one or both positions.
· Silver plated contacts and terminals.
· NS106 2 position (off-on) 2 terminals.
· NS106M 2 position (off-on) 2 terminals spring loaded for momentary contact.
· Hex nut mounted.
· All keyed alike or 200 combinations standard.
· 200 combinations available.
KEY-PULL FIGURES :
-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull

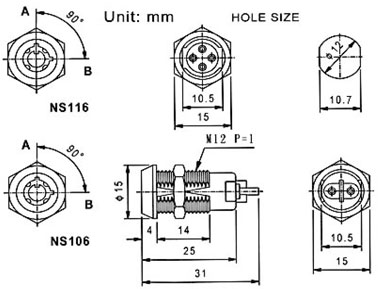

鑰匙開關_NS106/M 尺寸
|
