產(chǎn)品類型：Φ19電源鎖
額定值:125VAC 4A/250VAC 2A
產(chǎn)品描述
· Zinc alloy die cast housing and cylinder.
· Bright chrome plated standard.
· 5 disc tumbler mechanism.
· Reversible double-bitted brass keys, nickel plated.
· Silver plated contacts and terminals.
· 2 position (off-on) 4 terminals. (2NO 2NC)
· Hex nut or speed clip mounted.
· All keyed alike or 25 combinations standard.
· 150 combinations available.
SPECIFICATIONS:
• Contact Rating: 4A 125VAC, 2A 250VAC.
• Contact Resistance: 10Milli-Ohms Max.
• Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
• Dielectric Strenght:1500VAC-1 Minute

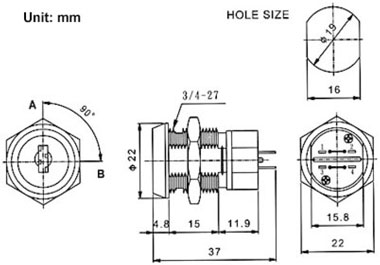

鑰匙開關(guān)-S286A尺寸
