產品類型：IC型編碼開關
規(guī)格參數
電氣壽命: 2,000 cycles
額定值: 25mA ,24V DC
接觸電阻: 100mΩ max.at 500VDC
絕緣電阻: 100MΩ min. at 500 V DC
絕緣強度: 500V AC/1 minute
Contact Arrangement 1 pole throw
操作溫度范圍:-20℃ to +85℃
儲存溫度范圍: -40℃ to +85℃
使用材質
底座與外殼: UL94V-0 Nylon High-Temp. Thermoplastic
顏色: Black
操作柄: UL94V-0 LCP High-Temp Thermoplastic
顏色: White
接點: Alloy Copper with gold plated
端子: Brass with gold plated
接觸額定值: Gold plated over nickel
型號: Kapton

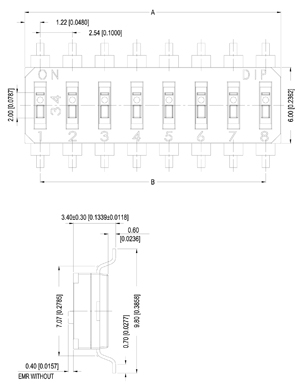

EM/EI/ES基本尺寸
,EI(R)&ES(R)-BASIC.jpg)
