產品類型：貼片型編碼開關
規格參數
電氣壽命: 1,000 cycles
額定值: 100mA ,50V DC
開關額定值: 25mA ,24V DC
接觸電阻 : 100mΩ max.at initial
絕緣電阻: 100MΩ min. at 500 V DC
耐壓: 300V AC/1 minute
回路: SPST
操作溫度范圍:-40℃ to +85℃
存儲溫度范圍: -40℃ to +85℃
使用材質
底座與外殼: UL94V-0 Nylon High-Temp. Thermoplastic
顏色: Black
撥柄: LCP High-Temp Thermoplastic
顏色: White
接點: Alloy Copper with gold plated
瘋子: Brass with gold plated
型號: KAPTON

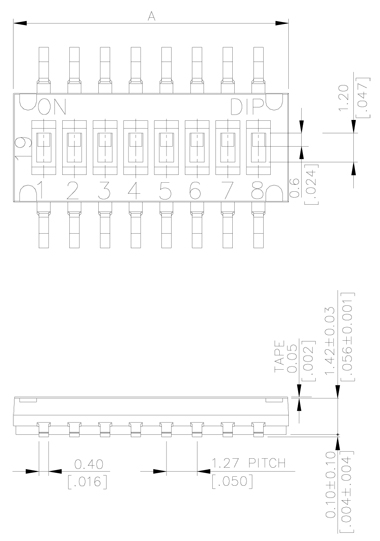

DHN基本尺寸
|
