產品類型：貼片IC型編碼開關

規格參數
電氣壽命: 2,000 operations per switch 24VDC 25 mA
額定值: 100mA ,50V DC
開關額定值: 25mA ,24V DC
接觸電阻 : (a)50mΩ max.at initial
                                 (b)100mΩ max.after life test
絕緣電阻: 100MΩ min. at 500 V DC
耐壓強度: 500V AC/ minute
電容: 5pF max
回路: SPST
操作溫度范圍:-20℃ to +85℃
存儲溫度范圍: -40℃ to +85℃


使用材質
底座及外殼: UL94V-0 PPS High-Temp Thermoplastic
顏色: Black
操作柄: UL94V-0 Nylon High-Temp Thermoplastic (NDI)
           UL94V-0 Nylon High-Temp Thermoplastic
           (V-option only for DM(R)、DL（R）、DJ(R))
顏色: White
接點: Alloy Copper with gold plated
端子: Brass with gold plated
接點電鍍: Gold plated over nickel
端子電鍍: Gold plated
型號: KAPTON

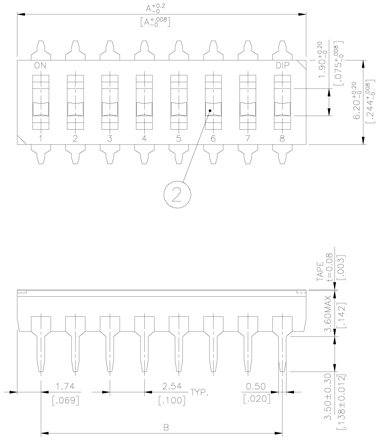

DM基本尺寸
