產品類型：DIP編碼開關

規格參數
電氣壽命: 500 cycles
操作力: 800gf
額定值： 100mA ,50V DC
開關額定值: 10mA ,5V DC
接觸電阻 : at current 100 mA
                                (a)100mΩ max.at initial
                                (b)200mΩ max.after life test
絕緣電阻: 100MΩ min. at 500 V DC
耐壓強度: 300V AC/ minute
電容: 5pF max
回路: SPST
操作溫度范圍:-30℃ to +80℃
存儲溫度范圍: -30℃ to +80℃


使用材質
蓋子: UL94V-0 Nylon High-Temp Thermoplastic
顏色: Black
底座: UL94V-0 Nylon High-Temp Thermoplastic
顏色: Black
操作柄: UL94V-0 Nylon High-Temp Thermoplastic
接點: Alloy Copper with gold plated
端子: Brass with Tin plated

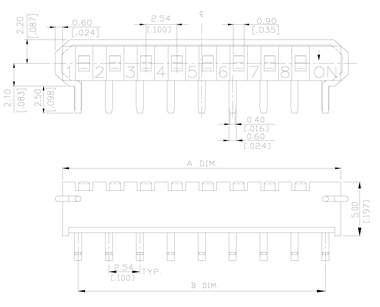

SIP基本尺寸
