Size:3.64x29.38mm
Tri-state Slide Type
規(guī)格參數(shù)
電氣壽命: 2,000 cycles
操作力: 1,000gf max
額定值: 100mA ,50V DC
開關(guān)額定值: 25mA ,24V DC
接觸電阻 : (a)50mΩ max.at initial
(b)100mΩ max.after life test
絕緣電阻: 100MΩ min .at 500VDC
耐壓強度: 500V AC/1 minute
回路: 3 switching positions
操作溫度范圍:-20℃ to +70℃
存儲溫度范圍: -40℃ to +85℃
使用材質(zhì)
座底與外殼: UL94V-0 PBT High Thermoplastic
顏色: Black
操作柄: UL94V-0 Nylon Thermoplastic
顏色: White
接點: Alloy Copper with gold plated
端子: Brass with gold plated
觸點電鍍: Gold plating over nickel

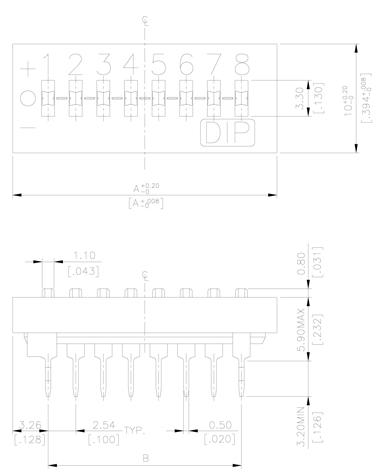

TDS基本尺寸
