尺寸:10x10mm
產品類型：旋鈕編碼開關
規(guī)格參數(shù)
機械壽命: 200m? max. 20,000 steps
操作力: 200gf Cm max.
操作溫度: -25℃ to +80℃
存儲溫度: -40℃ to +85℃
電氣壽命: 200m? max. 20,000 steps
斷開額定值: 100mA, 50VDC
合閘額定值: 24VDC, 25mA
接觸電阻: (a) 100m? max. (initial)
(b) 200m? (final – after test)
絕緣電阻: 100M? min. at 250VDC
耐電壓: 250VAC for 1 minute
使用材質
底座與上蓋: UL 94V-0 Nylon Thermoplastic
顏色: Black
操作柄: UL 94V-0 LCP Thermoplastic
顏色: White
接點: Alloy copper with gold plated over nickel
腳位: Brass with gold plated

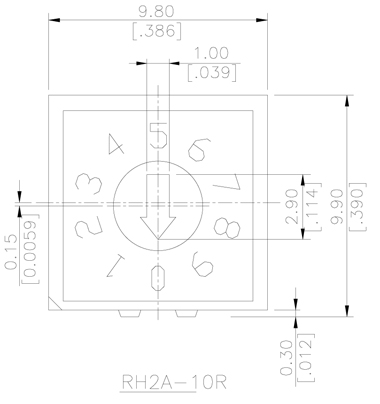

RH/RV/RM基本尺寸
