產品類型：旋轉編碼開關
規格參數
電氣壽命: 20,000 cycles
開關額定值: 25mA ,24V DC
操作力: 200gf-cm max
電路: 3 switching positions
工作溫度范圍:-30℃ to +80℃
儲存溫度范圍: -40℃ to +85℃
使用材質
罩子: Nickel silver
SEAL-1: Silicone rubber
顏色: Black,Square
SEAL-2: Silicone rubber
顏色: Black,Round
顏色: PA9T High-temp Thermoplastic
顏色: Red
座: Stainless steel
接點: Alloy Copper
彈簧鋼板: Piano wire
底座: PA9T High-temp Thermoplastic
顏色: Black
端子: Brass with gold plated

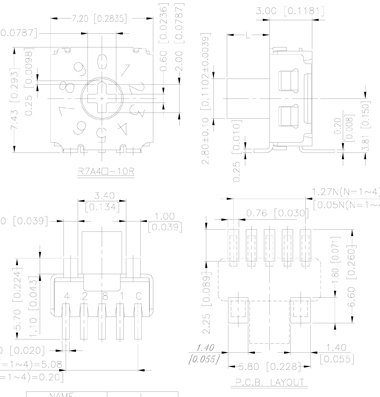

R7基本尺寸
