RT series Rotary Code Switch旋鈕開關

Specification
Pole-position: 1Pole, 2 Position~8 Position
                              (STOP LESS) are available
Electrical rating: 0.5A 24V DC ; 0.2A 48V DC
Contact resistance: 100mΩ Max.
Insulation resistance: 100MΩ min. 500V DC
Dielectric strength: Breakdown is not allowable ;
                                            500V AC for 1 minute
Operating force: 350 ± 100 g
Operating Life(壽命): 2,000 steps
Operating temperature range: - 20°C ~ 70°C

RT應用產業

產能:手工

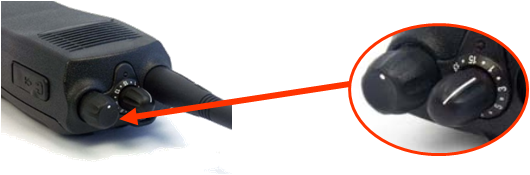

應用範圍: RT系列旋鈕開關可用于通訊設備、對講機、高價值玩具、插座電壓選擇器、遊戲機、錄放影機、空氣濾清器等產品。
開發原因：客戶需求
