DP系列編碼開關選型指南
02月01, 2012
| 產品特征 | |
 |
符合ROHS及LEED FREE 1/2/3/4/5/6/7/8/9/10檔可選擇 DIP直插端子 檔位選擇: Number Of Position： 01 = 1 Positions <Only For DS(R)> 02 = 2 Positions 07 = 7 Positions 03 = 3 Positions 08 = 8 Positions 04 = 4 Positions 09 = 9 Positions 05 = 5 Positions 10 = 10 Positions 06 = 6 Positions 12 = 12 Positions MECHANICAL Mechanical Life: 2,000 operations per switch. Operation Force: 400gf max. (DP Series) 1,000gf max. (DS & DA Series) Stroke: 2.0mm Operation Temperature: -20℃ to +70℃ Storage Temperature: -40℃ to +85℃ |

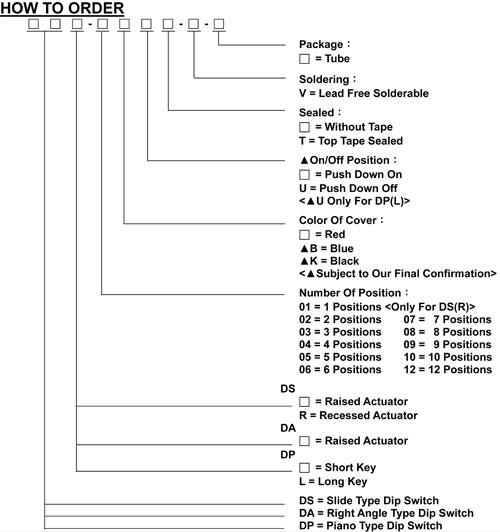

| 選型指引 | |
 |
|

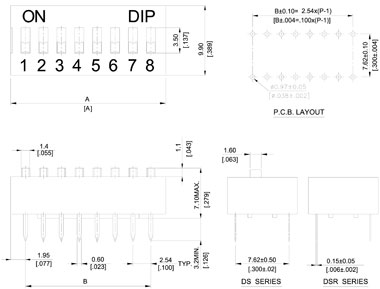

| 外形尺寸 | |
|
DS(R) |
 |

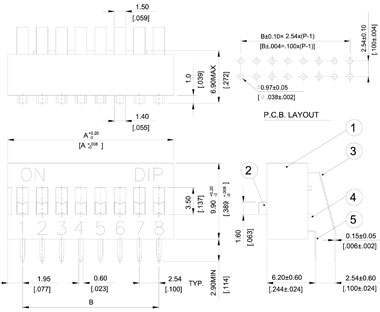

| DA |  |
相關產品：編碼開關-DP Series
想了解更詳細的產品規格，請與本公司業務人員聯系！
